738AL & 73LA
738AL & 73LB

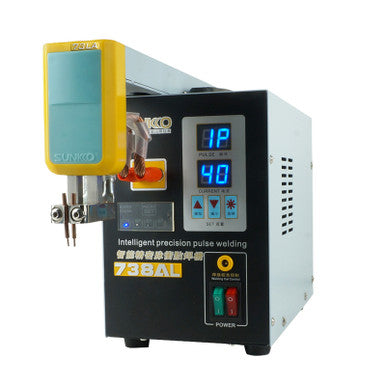

738AL Magnetic Detachable Telescopic Arm Precision Spot Welding Machine
Features:
1.It can weld 0.2mm pure nickel and 0.3mm nickel.
2.2/4/6/8 multiple pulses numbers are optional according to welding requirements.
3.Pulses numbers can be set up quickly and easily via touch sensing.
4.Industrialize product structure design makes the operation more humanization.
5.It has the function of quickly installing the welding pens, which expands welding range and meeting specific welding needs.
6.External foot control switch can make the spot welding position more precise.
7.It has the ability to assemble and quickly weld huge power battery packs.
Application
Lithium battery pack
Single row
18650 batteries
Pouch cell
Circuit board
Button battery
Welding parameters
Power supply:110V and 220V ±20V optional
Output power:3.6KW(Max.)
Welding current:50-800A
Welding thickness:0.05-0.2mm(pure nickel),0.05-0.3mm(nickel plated)
Thermostatic soldering station parameter
Welding needle spacing:2-7mm
Size of welding pin:01.5mmX7mm
Total length of spot welding pen:s580mm
Welding pen cable area:16mm
Packing list:
1）738AL welding machine *1 set；
2）73LA Spot welding head *1 pc
3）Pedal switch *1 pc
4）Large welding needles *4pcs
5 ) 73AL Telescopic welding arm *1 pc
6）6-section fixture *1 pc
7）Hex wrench *1 pc
8）Fuse tube *2 pcs
9）Nickel plated sample *100 pcs
10）Operation Manual *1 pc
Notices for using SUNKKO spot welding machine
1. In order to obtain good weld effect, please don't use the active socket,and should be used the wall socket to ensure stable power supply.
2.Because of the instant welding large current, rated current of tripping device of the leakage protection switch should be up to 40-63A.Lower than 40A will cause tripping.
3.Please set the pressure adjuster to the right parameter to avoid welding effect in not good.
4. Please keep the surface of welding pins clean and wipe off oxide with sand paper.
5.Please keep the welding pin in sharp shape.
6. Please do not worry about the lighting in flash. Spot welder is a high power machine and discharging high current instantaneously.Because this moment is in 20ms and it is normal.
